How to Match a Folding LED Display Screen to Your Venue: A Project-by-Project Fit Guide

Choosing the right folding LED display screen is not about finding the most advanced model; it is about matching the screen architecture, installation method, environmental protection level, and logistics workflow to the specific venue and event cycle you operate. This guide helps venue operators, event producers, rental companies, and integrators evaluate folding LED display options by project type, using specification evidence and real installation cases.

Why Venue Fit Determines the Success of a Foldable LED Screen Project

Foldable LED display screens replace heavy cabinet-based video walls with lightweight panels that can be folded for transport, stored in compact spaces, or hidden inside architecture when not in use. The actual benefit only appears when the screen design matches the venue constraints: a hotel banquet hall with ceiling integration needs a different product architecture than a concert stage requiring 360-degree curved visuals, and a shopping mall with daily promotions needs different deployment speed than an airport with strict safety approval.

Selecting a screen without evaluating the project environment usually leads to one of three failures: the screen cannot be installed in the available structure, the brightness or protection rating does not suit the environment, or the logistics and setup workflow erases the time savings promised by the foldable design.

The Main Factors That Define Project-Screen Fit

Six factors separate a well-matched folding LED display project from a problematic one:

1. Installation Architecture

Decide whether the screen must hang from a ceiling, mount on a wall, stand on a mobile frame, or be integrated with a lifting mechanism. A liftable foldable LED display requires mechanical integration with hoists or ceiling structures, while a mobile folding LED display carries its own structure and is designed for quick setup and relocation.

2. Environment and Protection Rating

Indoor, semi-outdoor, and outdoor environments require different protection levels. For example, Onumen's Easy Sailing EP series is rated IP43 for indoor/semi-outdoor use, while the Smart Plus FCSL series offers IP65 front and rear protection and can be upgraded to IP68. Outdoor installations also need wind-load considerations, which is why some transparent foldable screens use a hollow design to reduce wind load.

3. Brightness and Viewing Conditions

Venues with strong ambient light, including glass-fronted commercial spaces and outdoor stages, need higher brightness. Onumen's Magic Plus FPS series reaches 6000 nits, while indoor-oriented products such as the Smart FC series operate at 1000–1500 nits. Below 2000 nits, a screen is generally intended for controlled indoor lighting conditions.

4. Space Utilization and Storage

One of the strongest arguments for folding LED displays is hidden or space-saving installation. Realized projects include a kindergarten playground where the screen hides when not in use, a Shenzhen banquet hall where the screen is hidden in the interior design, and a Hong Kong shopping mall where the screen is lowered only for events. If the venue has height constraints or aesthetic requirements, a liftable/hidden design may be more valuable than a portable one.

5. Folding Angle and Creative Shape Requirements

The folding angle determines whether the screen can form curved, circular, wave, or staircase layouts. Onumen's EP series and FC series support 360° folding, enabling curved stage structures, while the FPS series supports 180° folding. A concert stage requiring a circular visual system, such as the Rolling Stone 30th Anniversary concert case, needs a 360° foldable product.

6. Deployment Frequency and Logistics

Rental operators and event companies move screens frequently. Products like the Easy Sailing EP150-EP225 and EP250-EP400 are designed as mobile, quick-assembly systems with integrated structure, control system, power supply, and flight case. The EP150-EP225 has a flight case size of 1500 × 400 × 430 mm and a total weight of 70 kg; the EP250-EP400 ships in two enclosures with a total weight of 150 kg. For comparison, panel-level products such as the Smart FC series weigh 11 kg/m² and are designed for hanging or wall-mounted installation rather than as self-contained mobile units.

Folding LED Display Screen Match Guide by Venue Type

The following sections map common venue types to appropriate folding LED display configurations, supported by Onumen's product specifications and documented projects.

Concert Venues and Large Stage Productions

Concerts need large-format visuals, dynamic movement, and sometimes curved or circular structures. Both indoor arenas and outdoor stadiums are common. Brightness requirements range from 1000–1500 nits for indoor stage environments (FC series) to 2400–6000 nits for outdoor or high-ambient-light stages (FCSL series). For creative curved layouts, 360° folding products are preferred.

Documented examples include:

• Rolling Stone 30th Anniversary Concert (Hong Kong): 100+ m² foldable LED display arranged into a circular structure, using 360° folding flexibility.
• SHINee concert (South Korea): 500+ m² liftable foldable LED display integrated into dynamic stage movements.
• JUL concert at Stade de France: 100+ m² liftable foldable LED display, used for dynamic lifting and folding during the performance.
• Fukuyama Masaharu Japan tour: three screens of 33m × 16m each, totaling 1670 m², with the F-P12 system.
• Zhang Jie concert (China): 500 m² liftable foldable display synchronized with stage lifting.
• Geely automotive launch event (China): 100+ m² foldable LED display creating a three-sided immersive space, with screens folding from bottom to top during the vehicle unveiling.

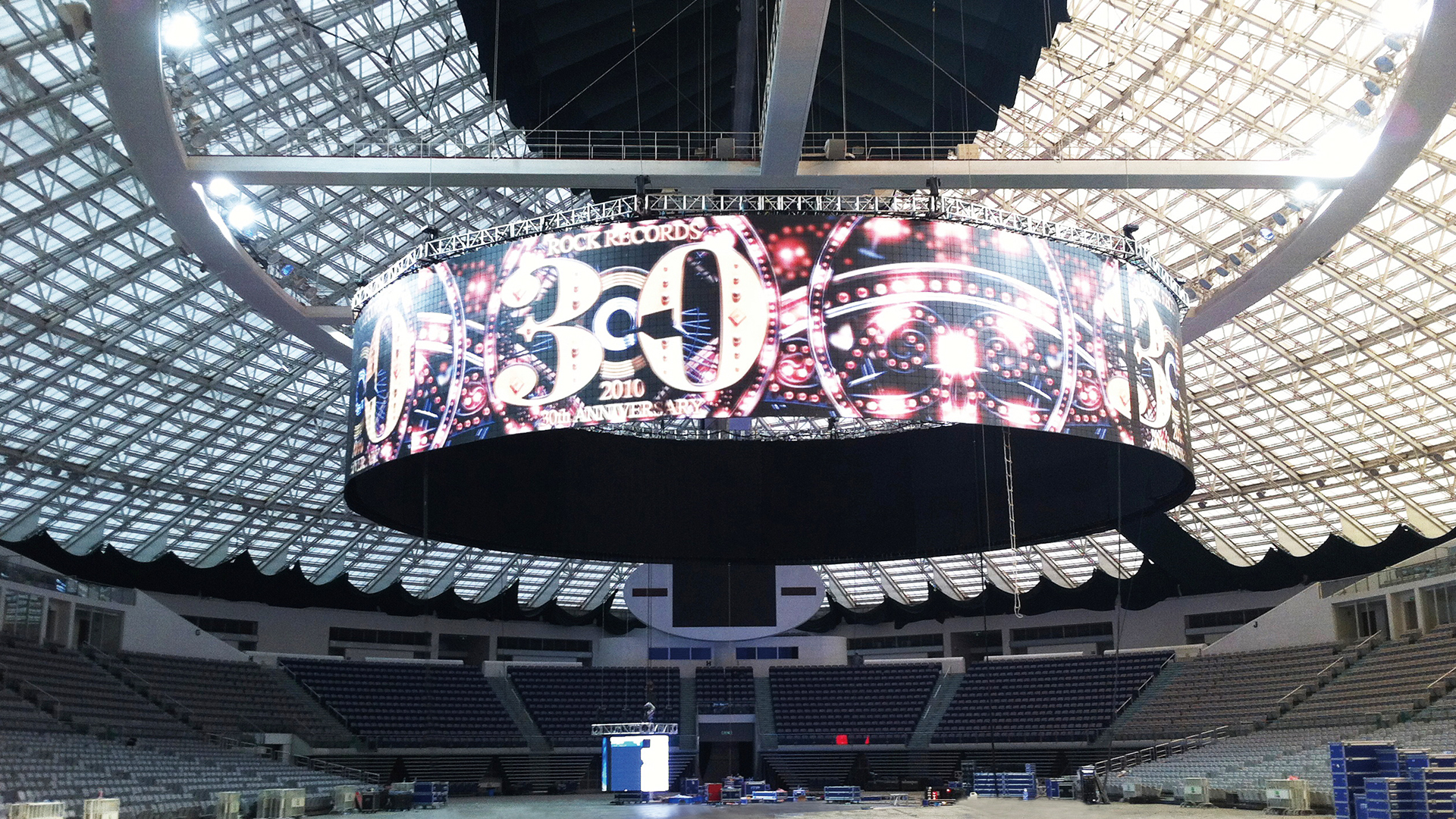

Rolling Stone 30th Anniversary Concert: circular structure created with a 360° foldable LED display.

Hotels, Banquet Halls, and Conference Centers

These venues typically need a large display for weddings, banquets, and conferences, but do not want a permanent black screen dominating the interior. A hidden liftable foldable LED display solves this by integrating into the ceiling or stage structure and lowering only during events.

A documented example is the Cuilin Banquet Hall in Shenzhen, China, where 50+ m² of liftable foldable LED display was hidden when not in use and automatically lowered and unfolded for weddings, banquets, and conferences. The screen has been in service for more than 5 years.

For hotels that need flexibility across multiple rooms, the EP225 is also a relevant option. The Libya hotel case deployed 5 units of EP225 mobile fast-assembly foldable LED displays for conferences and events, with quick setup and easy transport between rooms.

A liftable foldable LED display integrated into a banquet hall interior, hidden when not in use.

Shopping Malls and Commercial Spaces

Malls need high-impact displays for promotions and brand events, often in spaces that are also used for circulation and retail. The two documented approaches are hidden liftable installations and mobile folding displays.

The Tai Wai MTR shopping mall in Hong Kong integrated 50+ m² of hidden liftable foldable LED display, which remains flush with the interior when not in use and lowers automatically for commercial events. It has been in operation for more than 6 years.

The Zhejiang shopping mall case used 6 units of EP225 mobile fast-assembly foldable LED displays to support advertising and brand promotions, emphasizing quick setup, easy movement, and reuse across scenarios. This project has been running for more than 5 years.

Corporate Events, Exhibitions, and Rental Operations

Corporate events, conferences, exhibitions, and rental companies need screens that can be installed quickly, transported easily, and operated without heavy venue modification. The Easy Sailing EP series is explicitly designed for this workflow. It is a mobile folding LED display with 360° folding, screen sizes from 1000 × 1500 mm to 1000 × 4000 mm, pixel pitches of P2.6/P3.9/P5.2, and a weight of 12 kg/m². The EP150-EP225 fits in one flight case (1500 × 400 × 430 mm, total weight 70 kg). The EP250-EP400 uses two enclosures with a total weight of 150 kg.

The application scenario corpus describes these projects as "mobile LED display solution" or "portable stage display" projects, operating in event-based or intermittent mode in indoor and outdoor temporary environments, with special requirements for fast installation, lightweight design, foldable structure, and easy transportation.

Cultural Tourism and Architectural Displays

Outdoor cultural tourism projects must balance visual impact with architectural openness, wind resistance, and long-term reliability. The Wenzhou cultural tourism project in China installed 100 m² of transparent folding LED display, featuring a hollow transparent design that reduces wind load, automatic horizontal folding, and immersive visual effects. The project has been operational for more than 5 years.

This type of application favors transparent foldable screens such as the Smart T Plus FTS series, which offers 16.37%–56% transparency, IP65 protection (up to IP68), and pixel pitches from P3.9-7.8 to P37.5.

Educational Institutions

Schools, lecture halls, and smart classrooms benefit from space-saving displays that do not permanently occupy the room. Documented projects include:

• Ordos kindergarten (Inner Mongolia, China): 15+ m² outdoor liftable foldable LED display at an outdoor playground, hidden when not in use, operating for more than 5 years.
• Wenzhou Foreign Language School (China): 30+ m² liftable foldable LED display integrated into the lecture hall ceiling, automatically lowered for teaching and hidden otherwise, operating for more than 10 years.

These cases demonstrate that liftable foldable LED displays can serve both indoor education and outdoor campus events, provided the product is selected with the appropriate protection rating.

Airports and High-Traffic Public Zones

Airports and transit hubs require displays that can operate for long hours, fit into architectural constraints, and meet stricter safety and fire-resistance requirements. The Shibuya Station project in Tokyo used an ultra-thin fixed LED display with a separated power supply structure, reducing screen thickness, heat generation, and energy consumption. The installation has been in service for more than 5 years.

For airport projects, buyers should confirm compliance with applicable safety standards for high-traffic public spaces. The verified data notes that flexible and foldable LED screens for airports must comply with IEC 62368-1, including UL94 V-0 fire resistance and surface temperatures ≤70°C. Verify with the manufacturer that the specific product configuration and installation design meet the airport authority's requirements.

Step-by-Step: How to Choose the Right Folding LED Display for a Project

1. Define the venue environment. Indoor, semi-outdoor, or outdoor? What are the ambient light levels, temperature range, humidity, and wind exposure?
2. Define the installation architecture. Will the screen hang, mount on a wall, stand on a mobile frame, or be integrated with a lifting system?
3. Define the visual requirements. What pixel pitch and brightness are needed for the intended viewing distances and content? Use P2.6–P3.9 for closer viewing, and consider P5.2 or coarser for larger viewing distances.
4. Define the shape requirements. Flat screen, curved stage, circular structure, or creative installation? Choose 180° or 360° folding accordingly.
5. Define the deployment cycle. Will the screen be installed once for years, or set up and dismantled weekly? This determines whether a fixed/liftable architecture or a mobile quick-assembly system is more appropriate.
6. Check logistics constraints. Door sizes, elevator dimensions, storage space, and transport vehicles. Confirm flight case sizes and total weights, such as 70 kg for EP150-EP225 in one case or 150 kg for EP250-EP400 in two cases.
7. Review compliance and certifications. Confirm CE, RoHS, FCC, and any project-specific standards. Onumen's production holds ISO management system certificates, CE, FCC, and RoHS international product certifications.
8. Request a project-specific quotation. Screen size, pixel pitch, control system, installation structure, and packaging can be customized. Onumen's MOQ is 1 m², with a typical lead time of 30–90 days after order confirmation and monthly capacity of 3,000–5,000 m².

Folding LED Display Comparison: Which Series Fits Which Project

The table below compares Onumen's main folding LED display series using published specifications. Use it as a starting point for shortlisting, then confirm details with the manufacturer for your specific project.

Use Cases and Evidence from Installed Projects

Onumen Technology Co., Ltd., founded in 2009, is a Shenzhen-based manufacturer specializing in lightweight foldable and rollable LED display solutions. The company reports 70% export share across the USA, Europe, Japan, South Korea, Russia, and the Middle East, and its portfolio covers foldable LED display and rolling LED display series.

Documented installations relevant to venue matching include:

• Geely automotive launch event (China, 100+ m²): three-sided foldable LED display with synchronized mechanical movement; the lifting platform rose while screens folded from bottom to top during the vehicle unveiling.
• Rolling Stone 30th Anniversary Concert (Hong Kong, 100+ m²): 360° foldable LED display arranged into a circular structure for immersive viewing.
• Fukuyama Masaharu Japan tour (Japan, 1670 m² total): three units of 33m × 16m LED display systems for large-scale concert visuals.
• SHINee concert (South Korea, 500+ m²): liftable foldable LED display for dynamic stage movement.
• JUL concert at Stade de France (France, 100+ m²): liftable foldable display integrated into a stadium concert stage.
• 2024 MAMA Awards (Japan, 100+ m²): hidden liftable foldable LED display integrated with the stage lifting system.
• Cuilin Banquet Hall, Shenzhen (China, 50+ m²): hidden liftable foldable display for weddings, banquets, and conferences.
• Tai Wai MTR shopping mall, Hong Kong (China/HK, 50+ m²): hidden liftable foldable display for mall events and promotions.
• Wenzhou cultural tourism project (China, 100 m²): transparent folding LED display with hollow wind-resistant design and automatic horizontal folding.
• Ordos kindergarten (China, 15+ m²): outdoor liftable foldable display hidden on the playground, used for campus events.
• Wenzhou Foreign Language School (China, 30+ m²): ceiling-integrated liftable foldable display for lectures and teaching.
• Zhejiang shopping mall (China, 6 units EP225): mobile fast-assembly foldable displays for commercial promotions.
• Libya hotel (5 units EP225): mobile foldable displays for hotel conferences and banquets.
• Shibuya Station, Tokyo (Japan, 50+ m²): ultra-thin fixed LED display with separated power supply for a transit environment.
• Guatemala outdoor advertising (50+ m²): double-sided ultra-thin fixed LED displays on advertising poles for long-term outdoor operation.

Frequently Asked Questions

What safety and compliance standards apply to folding LED display screens for airports and high-traffic public venues?

For airports and high-traffic public zones, flexible and foldable LED screens should comply with IEC 62368-1, which mandates UL94 V-0 fire resistance and surface temperatures ≤70°C. Onumen's production holds ISO management system certificates, CE, FCC, and RoHS international product certifications. Buyers should verify that the specific screen configuration, cabling, and installation design satisfy the venue authority's requirements before procurement.

Can a folding LED display support curved, circular, or other creative shapes?

Yes, but the folding angle determines the range of shapes. Products such as the Smart FC series, Smart Plus FCSL series, Smart T Plus FTS series, and Easy Sailing EP series support 360° folding, which enables curved, circular, wave, and staircase layouts. The Magic Plus FPS series supports 180° folding. For example, the Rolling Stone 30th Anniversary Concert used a foldable LED display arranged into a circular structure.

What is the typical lead time and MOQ for a project-specific folding LED display order?

Onumen's production capability supports customization of screen size, pixel pitch, cabinet design, installation structure, control system, logo, and packaging. The MOQ is 1 m², and the lead time is 30–90 days after order confirmation. Monthly production capacity is 3,000–5,000 m², and every order undergoes 100% aging testing and quality inspection before shipment. To plan a project schedule, request a quotation with confirmed specifications early, as lead time depends on order volume and configuration.

Which folding LED display is best for a hotel banquet hall that wants to hide the screen when not in use?

Hotels and banquet halls typically use a liftable foldable LED display integrated with the ceiling or stage structure. The screen remains hidden when not in use and is automatically lowered and unfolded during events. A documented example is the Cuilin Banquet Hall in Shenzhen, China, where 50+ m² of hidden liftable foldable LED display has been used for weddings, banquets, and conferences for more than 5 years. For hotels that need one screen moved between different rooms, the Easy Sailing EP225 mobile folding display is an alternative, as demonstrated by a hotel in Libya using 5 units.

Can I get a sample or project-specific quote before committing to a full installation?

Onumen supports project-based procurement with an MOQ of 1 m², which allows buyers to validate a folding LED display in a real venue before scaling up. Customization covers screen size, pixel pitch, cabinet design, installation structure, control system, logo, and packaging. To start, contact Onumen with your venue dimensions, environmental conditions, and visual requirements to receive a project-specific quotation and technical guidance.

Conclusion

The correct folding LED display screen is the one that fits the venue's installation architecture, environmental conditions, visual requirements, and operational workflow. For concert stages, prioritize folding angle, brightness, and mechanical integration. For hotels and shopping malls, prioritize hidden liftable installation and space-saving design. For corporate events and rental operations, prioritize mobile quick-assembly systems with compact flight cases. For cultural tourism and architectural projects, prioritize transparency, wind resistance, and environmental protection. For airports, verify safety compliance for high-traffic public spaces.

Use the comparison table and project evidence above to shortlist candidates, then confirm specifications with the manufacturer before finalizing your procurement plan.
